Robust magnetic solutions with protective coating
Encapsulated magnets are coated with a plastic, rubber, or metal shell that protects the magnetic core from corrosion, mechanical influences, or electrical conductivity. They provide a secure hold even on sensitive surfaces and are ideal for indoor and outdoor applications, such as signage, automotive engineering, or humid environments.

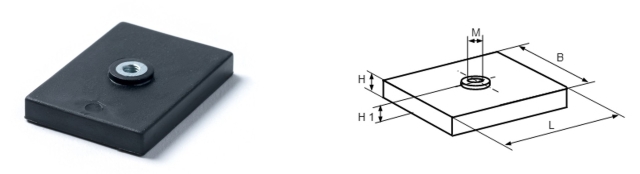

Rubber coated magnet, small
with soft, anti-slip holding surface
Versions
Selection of our stock items (other specifications upon request)
| Item-no. | L | B | H | H1 | M | Force (kg) |
|---|---|---|---|---|---|---|
| 80.0008.A | 43 | 31 | 6 | 7 | 6 | 10 |
| 80.0008.B | 43 | 31 | 6 | 7 | 4 | 10 |

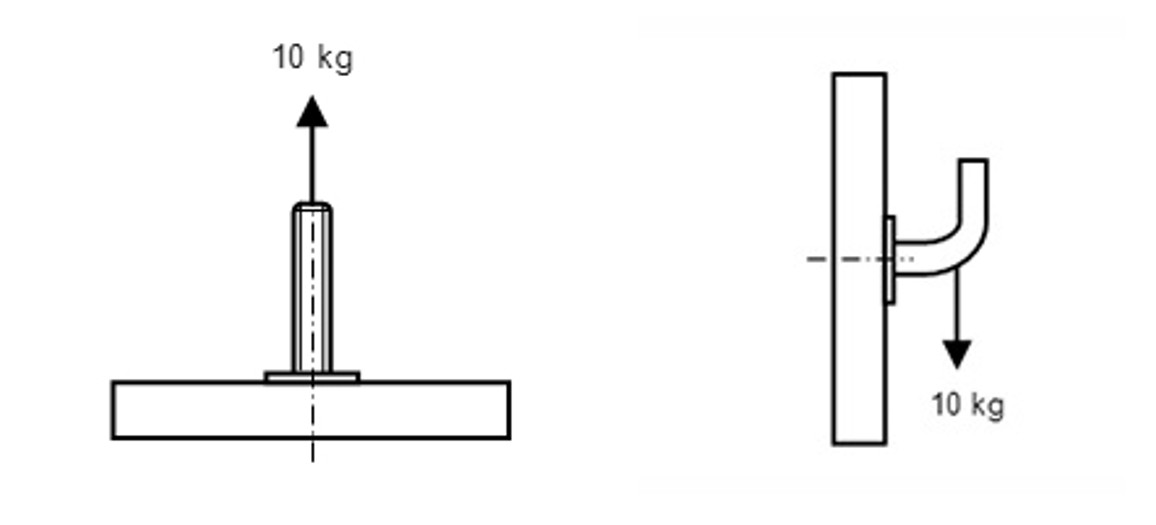

Possible applications
Horizontal e.g. as a magnetic base for attaching advertising media, taxi signs, roof carriers etc. on vehicles.
Vertical e.g. as a wall magnet at office walls for hanging pictures, dresses etc.
Characteristic
- Magnet material NdFeB (Neodymium)
- Coating Santoprene
- No scratching of painted / anodized surfaces
- Especially suitable for thin, uneven steel sheets as on car roofs
- Loadable on tensile- or shear force
- Slip resistance up to the holding force
- Operating temperature up to 80°C

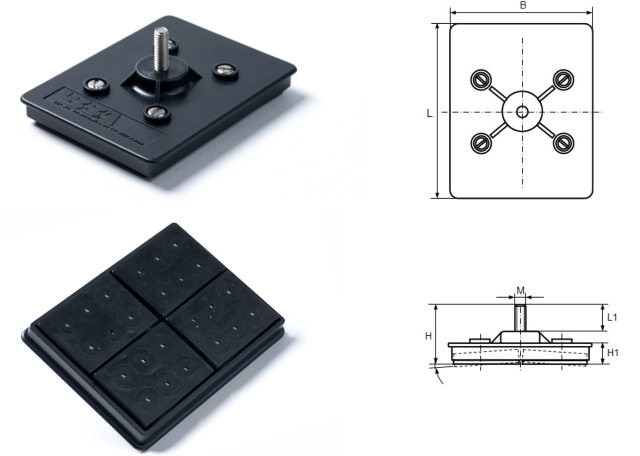

Rubber coated magnets big
with soft, anti-slip and adaptable holding surface
Versions
Selection of our stock items (other specifications upon request)
| Item-no. | L | B | H | H1 | M | L1 | force (kg) |
|---|---|---|---|---|---|---|---|
| 80.0009 | 97 | 73 | 37 | 12 | 6 | 18 | 40 |
Characteristic
- Magnet material NdFeB (Neodymium)
- Coating Santoprene
- Housing plastic, black
- Multi-part, adaptable holding surface
- No scratching of painted / anodized surfaces
- Especially suitable for thin, uneven steel sheets as on car roofs for attaching advertising media, taxi signs, roof carriers etc.
- Loadable on tensile- or shear force
- Slip resistance up to the holding force
- Operating temperature up to 80°C

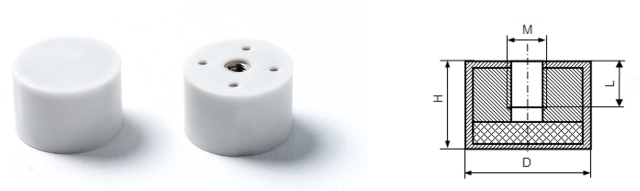

Rubber coated magnet, round
with soft, anti-slip holding surface
Versions
Selection of our stock items (other specifications upon request)
| Item-no. | D | H | M | L | Force (kg) |
|---|---|---|---|---|---|
| 63.4201 | 20±0.2 | 13.5±0.2 | 4 | 5 | 10 |

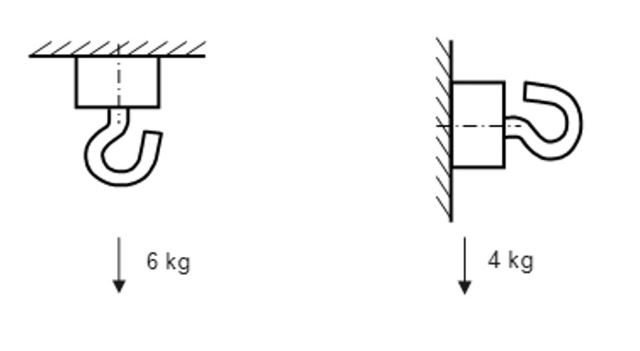

Possible applications
Horizontal e.g. as a magnetic base, as ceiling magnet etc.
Vertical e.g. as a wall magnet at office walls for hanging pictures, dresses etc.
Characteristic
- Magnet material NdFeB (Neodymium)
- Coating rubber white (other colours upon request)
- No scratching of painted / anodized surfaces
- Loadable on tensile- or shear force
- Operating temperature up to 80°C
