Transporting, cleaning, separating for Iron parts, Aluminium, Copper etc.
A magnetic separator utilizes the different magnetic properties of particles. Ferromagnetic and paramagnetic particles are drawn to areas with higher magnetic induction and retained on the magnetic element; non-magnetic particles are not attracted and remain on the conveyor belt or fall past the magnetic separator.

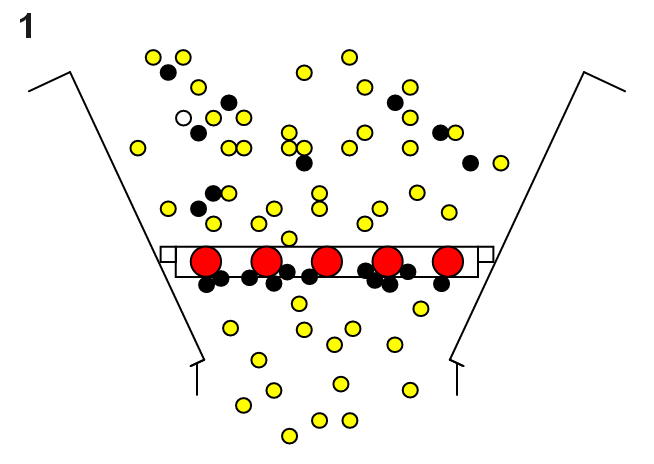

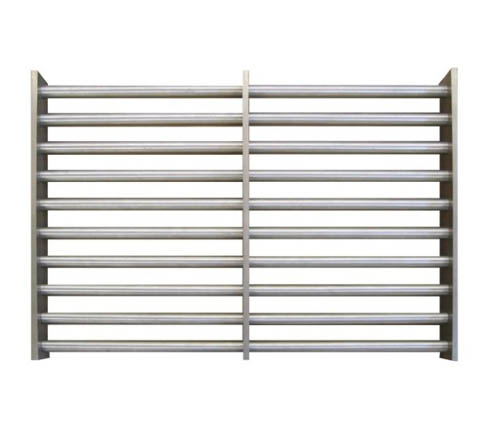

Magnetic grid
Magnetic grids are used wherever a low installation height and a large cross-section are required.
 |
 |

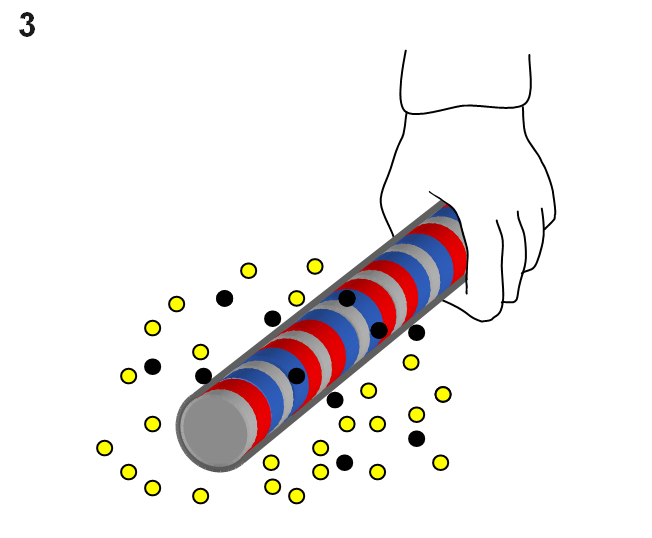

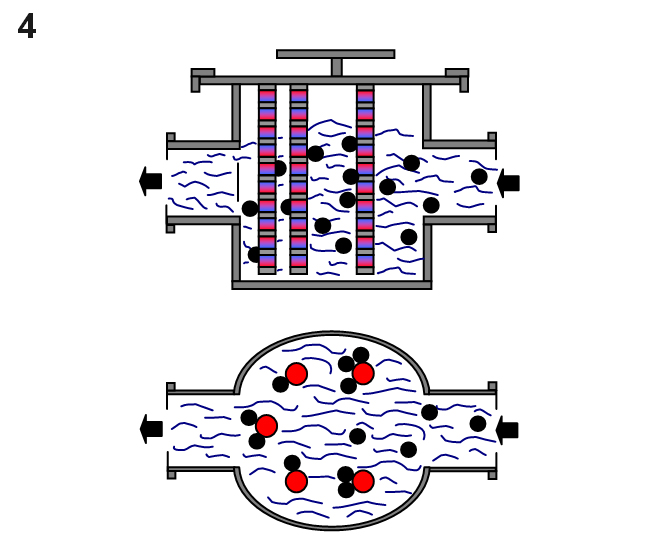

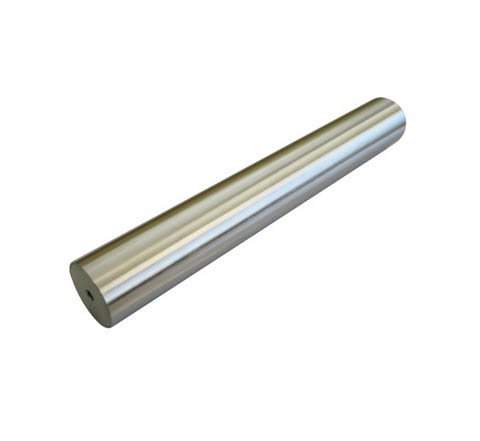

Magnetic filter bar
Magnetic filter bars can be used in liquid or solid material flow. Mounting options with internal thread or threaded bolt.
 |
 |

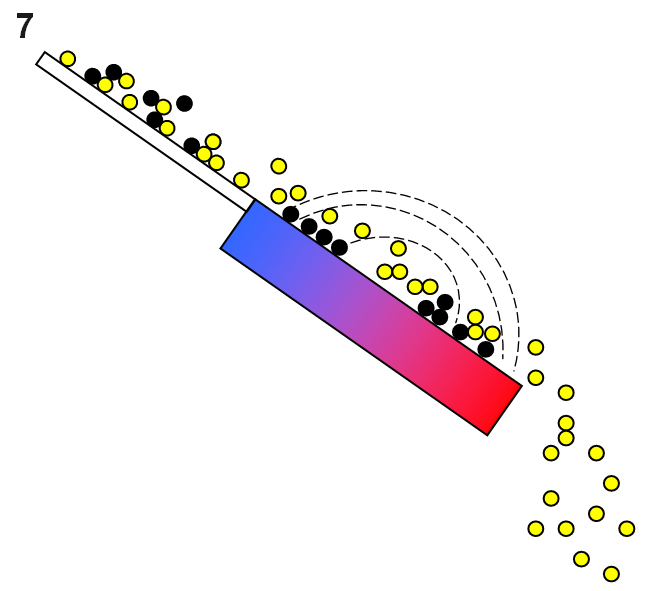

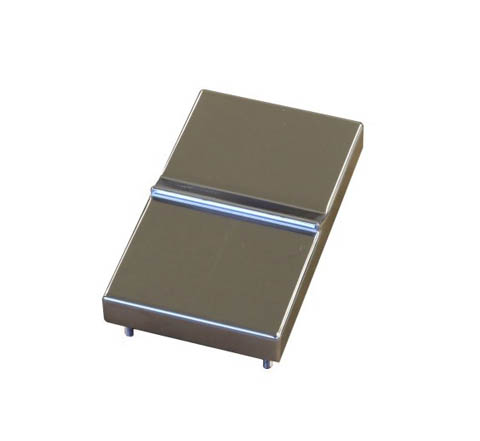

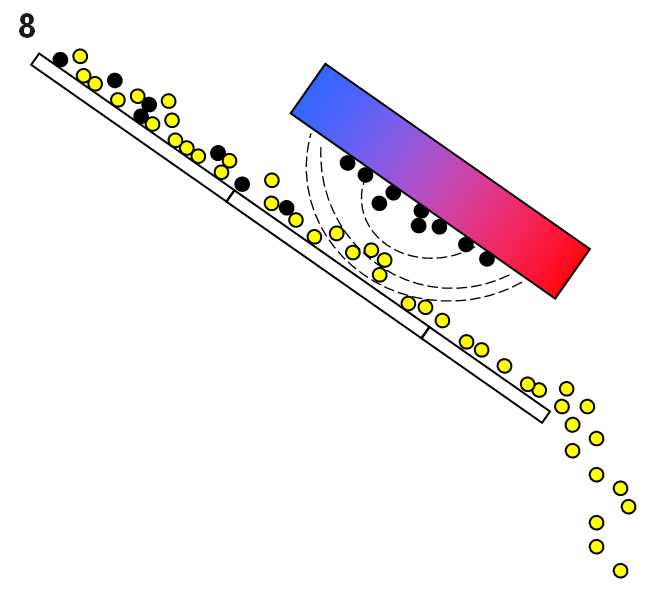

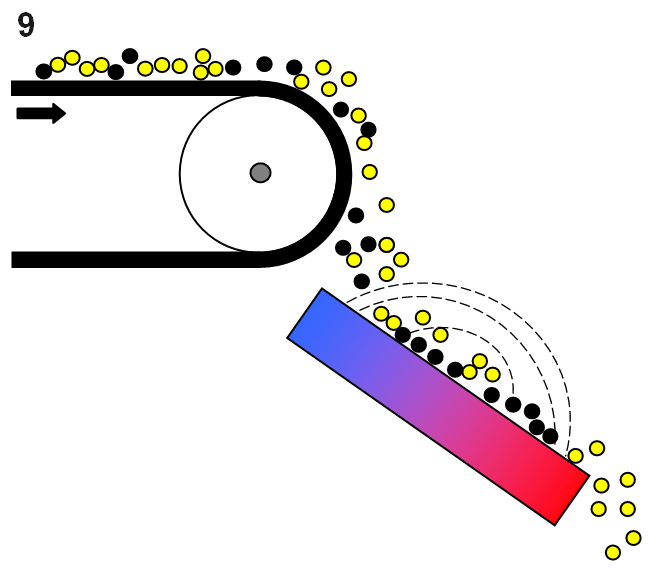

Magnetic plate
Magnetic plates are suitable for separating ferromagnetic parts from raw materials that are transported in vertical or inclined pipelines on chutes, conveyor belts, etc. For easier cleaning the plate can be equipped with hinges.
 |
 |
 |
 |
 |
 |

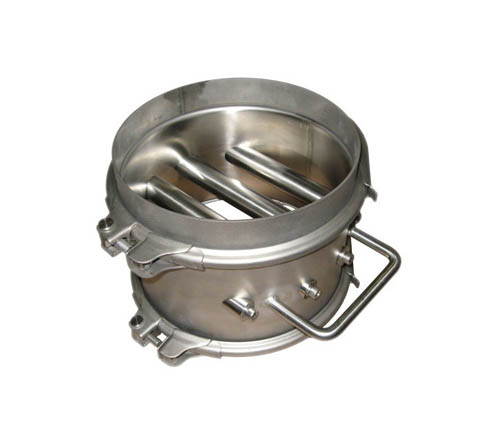

Pipe magnet
Pipe magnets are installed vertically directly into the pipe. For cleaning, the magnet can be swung out.
 |

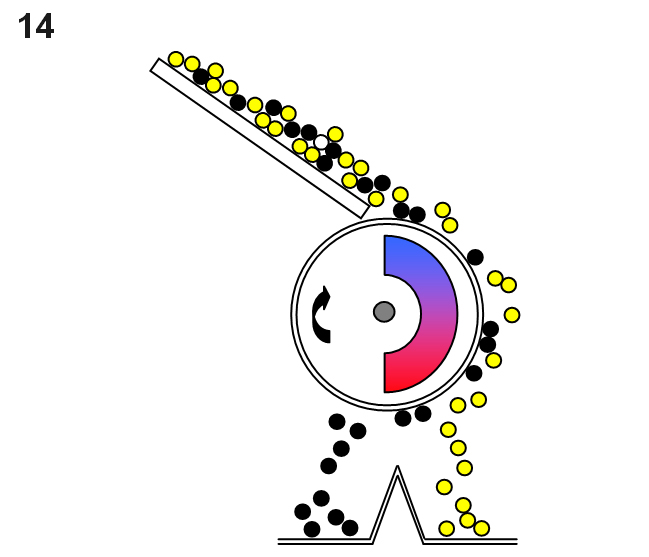

Drum magnet
Through a constantly rotation of the drum, iron parts are automatically separated from the product stream and removed.
 |
 |
 |
 |

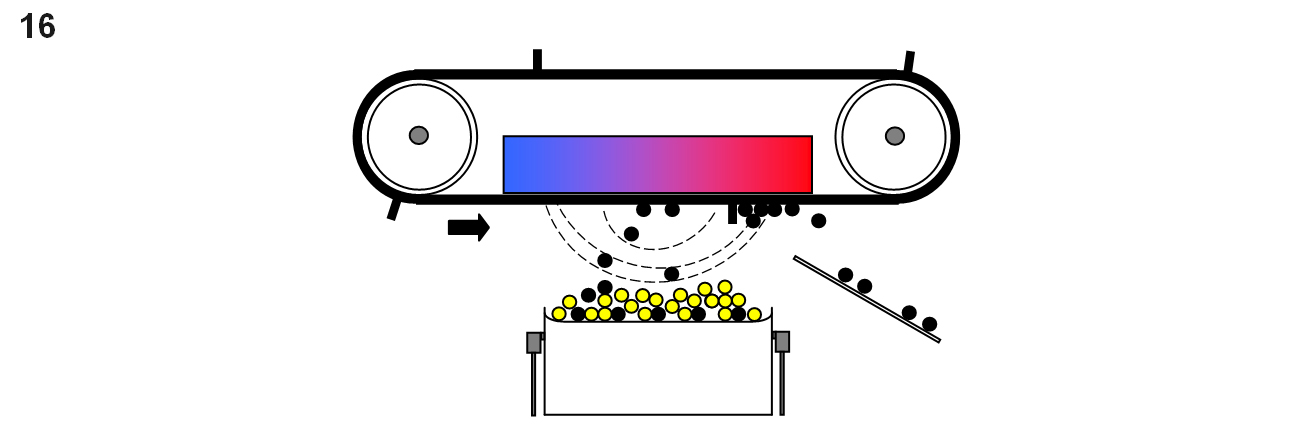

Over belt magnet
Over belt magnets are particularly suitable for the automatic separation of ferromagnetic parts from raw materials transported by conveyor belts. The over belt magnet is mounted transversely to the conveyor belt.
 |
Customer examples
Magnetic grid
Magnetic filter bar
Magnetic plate
Pipe magnet
Drum magnet
