Professional flux density meter available with various hall probes

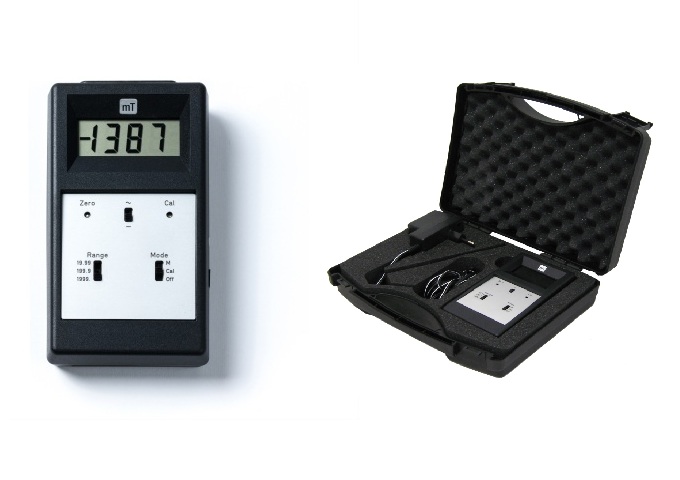

Flux density measuring unit H1-4
Item-no. 80.0017.B
Application
Hand-held unit to measure permanent and alternating magnetic fields.
Technical data
| Display | LCD-display, 15 mm high, 3 ½ digits, 3 readings/second, automatically polarity display |
| Measuring ranges | 0-20 mT 0-200 mT 0-2000 mT |
| Highest resolution | 0.01 mT |
| Measuring accuracy | better ± 2% of the measured value via internal calibration voltage better ± 1% of the measured value by means of reference magnet |
| Output | analogue output ± 200 mV equivalent 1999 digits connection for analogue-display, x-y recorder and A/D converter |
| Power supply | via included power supply or dry battery 9 V |
| Time of operation | approx. 100 hours with dry battery |
| Dimensions | 145 mm x 80 mm x 38 mm |
| Weight | 0.3 kg |

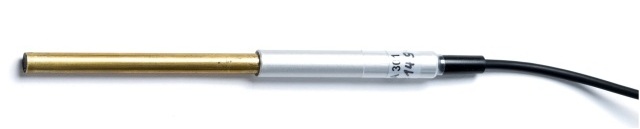

Axial-Hall probe HS-A 301
Item-no. 80.0017.A.03
to measure the magnetic field strength H with the flux density meter H1-4
| Application | For measurements of fields that run in the direction of the probe axis |
| Dimensions | Diameter 6+0.05 mm Length (without handle) 70 mm Length (with handle) 140 mm |

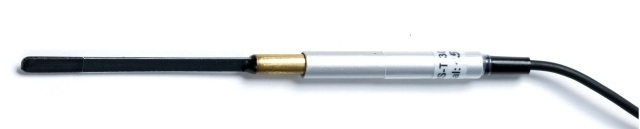

Transversal-Hall probe HS-T 301
Item-no. 80.0017.A.04
to measure the magnetic field strength H with the flux density meter H1-4
| Application | For measurements of fields that are perpendicular to the probe axis |
| Dimensions | Thickness 1.2 mm Width 5.0 mm Length (without handle) 70 mm Length (with handle) 140 mm |
