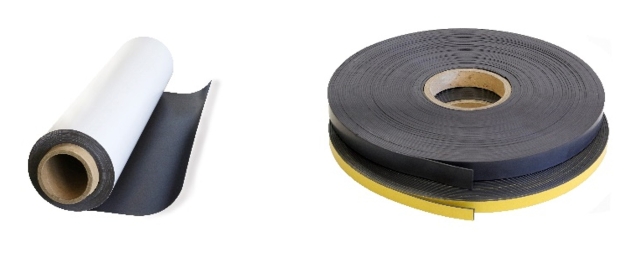

Flexible magnetic film for a variety of applications
Plastoferrit is a flexible magnetic film that adheres to a variety of surfaces. This magnetic sheet is easy to cut and is ideal for creating promotional materials, signs, or mobile magnetic applications. It is commonly used in advertising, trade show construction, or the design of promotional items.
Selection of our stock items (other specifications upon request)
| Item-no. | Tickness mm | Width mm | Length m | Execution | Magnetisation | Holding Force g/cm2 |
|---|---|---|---|---|---|---|
| Roll | ||||||
| 42.0002 | 0.75 | 615 | 30 | raw | 1 | 25 |
| 42.0003 | 0.75 | 1’000 | 15 | raw | 1 | 25 |
| 42.0012 | 0.90 | 620 | 30 | 1 | 30 | |
| 42.0014 | 0.90 | 1’000 | 10 | PVC white matt | 1 | 30 |
| 42.0026 | 0.50 | 615 | 30 | self-adhesive | 1 | 40 |
| 42.0027 | 0.85 | 615 | 30 | self-adhesive | 1 | 80 |
| Strip | ||||||
| 42.0034 | 1.70 | 12.5 | 30 | self-adhesive | 1 | 60 |
| 42.0036 | 1.70 | 25 | 30 | self-adhesive | 1 | 60 |
| 42.0046 | 1.70 | 25 | 30 | raw | 1 | 60 |
| 42.1212 | 1.50 | 20 | 40 | raw | 1 | 100 |
| 42.1213 | 1.50 | 40 | 40 | raw | 1 | 100 |
| 42.1215 | 1.50 | 50 | 40 | self-adhesive | 1 | 100 |
| 42.1220 | 2.00 | 20 | 10 | self-adhesive | 1 | 80 |
| Profile | ||||||
| 42.0082 | 4.00 | 12 | 50 | raw | 2 | 70 |
| 42.0083 | 6.00 | 9 | 50 | raw | 2 | 70 |
Magnetisation
- 1 = one side multipole magnetized
- 2 = magnetized through thickness
Characteristic
- magnet material HF (Hard Ferrite)
- working temp. 80°C (depending on binder and time up to 150°C)
- low holding force
- easy to be machined by punching, cutting
Execution
- roh
- raw
- one side with self-adhesive tape
- on one side with PVC film, colours white matt or high gloss, yellow, blue, green, red and black
