Compact magnetic holder for doors or lids
A magnetic catcher is a fastener that uses magnetic forces to hold two parts together, usually a door and a cabinet. It consists of a magnetic part and a metal plate that are attached to the respective opposite parts. When closing, the magnet pulls the plate toward it, closing the door and holding it in place without the need for manual locking. They are often used on cabinets and lightweight doors to enable quiet, gentle closing.

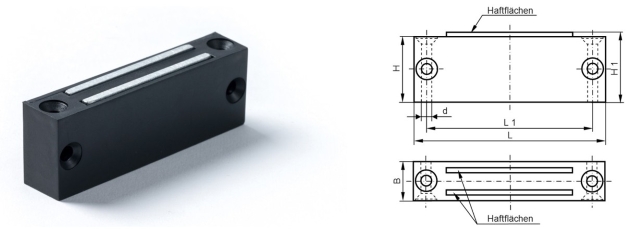

Magnetic catches one sided
with adaptable holding surface, front and side mounting
Versions
Selection of our stock items (other specifications upon request)
| Item.no. | L | B | H | L1 | H1 | d | Force (kg) | Color |
|---|---|---|---|---|---|---|---|---|
| 62.7077.A | 76 | 15.5 | 26 | 66 | 27 | 4.5 | 10 | black |
| 62.7077.B | 76 | 15.5 | 26 | 66 | 27 | 4.5 | 30 | black |
Characteristic:
- Housing plastic
- Adaptable holding surface
- Metal parts Zinc coated
- Working temperature up to 80°C (> 80°C upon request)

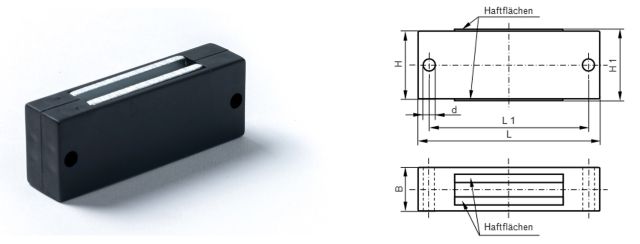

Magnetic catches double-sided
with adaptable holding surface, side mounting
Versions
Selection of our stock items (other specifications upon request)
| Item-no. | L | B | H | L1 | H1 | d | Force (kg) | Color |
|---|---|---|---|---|---|---|---|---|
| 62.7074 | 67 | 15.5 | 24 | 59 | 25 | 4.5 | 10 | black |
| 62.7074.A | 67 | 15.5 | 24 | 59 | 25 | 4.5 | 30 | black |
Characteristic:
- Housing plastic
- Double-sided adaptable holding surface
- Metal parts Zinc coated
- Working temperature up to 80°C (> 80°C upon request)
Magnetic catches aluminium
with adaptable holding surface, front and side mounting
Versions
Selection of our stock items (other specifications upon request)
| Item-no. | L | B | H | L1 | B1 | H1 | L2 | B2 | H2 | d | Force (kg) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 62.7045 | 45 | 11.5 | 15 | 36 | 8.5 | 11.5 | 25 | 4.5 | 5.5 | 3.5 | 4 | silver |
Characteristic:
- Housing aluminium
- Adaptable holding surface
- Metal parts Zinc coated
- Working temperature up to 250°C
- Counterpart optional

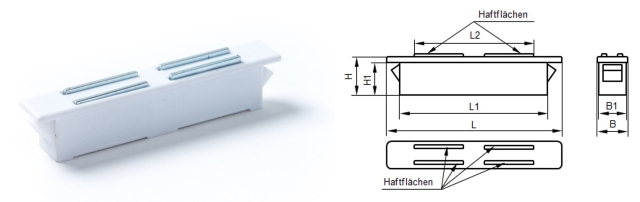

Magnetic catches latchable
with adaptable holding surface
Versions
Selection of our stock items (other specifications upon request)
| Item-no. | L | L1 | L2 | B | B1 | H | H1 | Force (kg) | Color | Counterpart |
|---|---|---|---|---|---|---|---|---|---|---|
| 62.7039 | 39.5 | 33.5 | 21.5 | 10 | 8 | 12 | 11 | 3.5 | white | included |
| 62.7070.A | 64 | 54.5 | 43 | 10 | 9.7 | 13 | 11.5 | 6 | white | without |
Characteristic:
- Housing plastic
- Adaptable holding surface
- Latchable
- Metal parts Zinc coated
- Working temperature up to 80°C (> 80°C upon request)

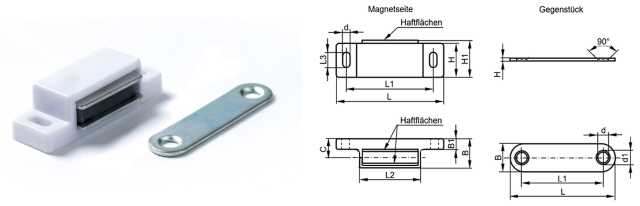

Magnetic catches with counterplate
with adaptable holding surface
Versions
Selection of our stock items (other specifications upon request)
| Item-no. | L | B | H | L1 | B1 | H1 | L2 | d | L3 | C | d1 | Force (kg) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 62.7048 | 46 | 13.5 | 14.5 | 38 | 4.5 | 16 | 28 | 3.5 | 7 | 8 | - | 4 | white |
| Counterplate | 45 | 12 | 1.2 | 35 | - | - | - | 4.7 | - | - | 6.2 | - | Zn-coated |
Characteristic:
- Housing plastic
- Adaptable holding surface
- Metal parts Zinc coated
- Working temperature up to 80°C (> 80°C upon request)
- Fastening with screw M3 (not included)

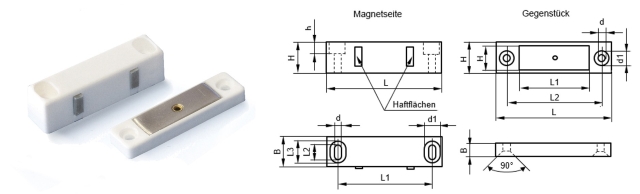

Magnetic catches with counterpart
with adaptable holding surface, spring-loaded counterpart
Versions
Selection of our stock items (other specifications upon request)
| Item-no. | L | B | H | H1 | L1 | L2 | d | L3 | d1 | h | Force (kg) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 62.7048 | 48 | 12 | 13 | - | 39 | 6 | 3.5 | 9 | 6.5 | 5 | 3 | white |
| Counterpart | 48 | 5.5 | 13 | 10 | 30 | 39 | 3.3 | - | 6.3 | - | - | white |
Characteristic:
- Housing plastic
- Adaptable holding surface
- Metal parts Zinc coated
- Working temperature up to 80°C (> 80°C upon request)
