Practical magnetic solutions for ceiling mounting
Ceiling magnets are strong, flat magnets specially designed for mounting on ceilings or in hard-to-reach places. They are ideal for quickly and securely mounting objects such as light sources or decorations, and offer a reliable solution for industrial, commercial, or interior design applications.
Pot Magnet “Magic” with Hook
Selection of our stock items (other specifications upon request)
| Item-no. | D | H | H1 | M | Force (kg) |
|---|---|---|---|---|---|
| 63.2162.A | 16±0.2 | 28 | 12±0.2 | 4 | 10 |
| 63.2201.A | 20±0.2 | 36 | 16±0.2 | 6 | 15 |
| 63.2251.A | 25±0.2 | 36 | 16±0.2 | 6 | 25 |
| 63.2302.A | 32±0.2 | 40 | 20±0.2 | 6 | 40 |
Characteristic
- Magnet material NdFeB (Neodymium)
- Highest force at minimal size
- Best cost/force ratio
- Coating Nickel (other coatings upon request)
- Working temperature up to 80°C (> 80°C upon request)

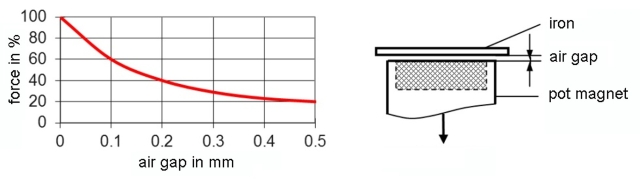

Air gap / Force comparation

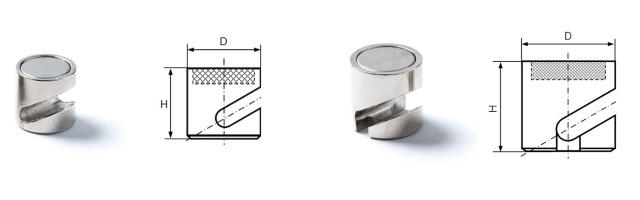

Pot magnets "Magic" with slot
Versions
| Item-no. | D | H | Force (kg) |
|---|---|---|---|
| 63.2120.A | 12±0.1 | 12±0.1 | 5 |
| 63.2160 | 16±0.2 | 16±0.2 | 10 |
Characteristic
- Magnet material NdFeB (Neodymium)
- Highest force at minimal size
- Best cost/force ratio
- Coating Nickel (other coatings upon request)
- Working temperature up to 80°C (> 80°C upon request)
Air gap / Force comparation
